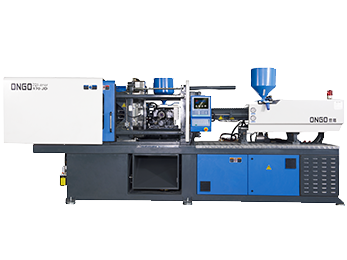

| ZSQ 270 | |||||||||
| 項目 | Item | 單位 | 主注射系統 | 副注射系統 | |||||
| 注射裝置 | INJECTION UNIT | A | B | C | A | B | C | D | |
| 螺桿直徑 | Screw diameter | mm | 50 | 55 | 60 | 32 | 35 | 38 | 42 |
| 螺桿長徑比 | Screw L/D ratio | L/D | 23 | 21 | 19.2 | 24.1 | 22 | 20.2 | 18.4 |
| 理論注射容量 | Shot volume(theoretical) | cm3 | 530 | 641 | 763 | 137 | 163 | 192 | 235 |
| 注射重量 | Injection weight(ps) | g | 482 | 583 | 694 | 125 | 148 | 175 | 213 |
| 注射速率 | Injection rate | g/s | 187 | 227 | 270 | 74 | 89 | 105 | 128.1 |
| 注射壓力 | Injection pressure | Mpa | 205 | 169 | 142 | 260 | 219 | 186 | 152 |
| 螺桿轉速 | Screw speed | rpm | 180 | 210 | |||||
| 鎖模裝置 | CLAMPING UNIT | ||||||||
| 鎖模力 | Clamping force | kN | 2700 | ||||||
| 移模行程 | Open stroke | mm | 540 | ||||||
| 拉桿間距(寬×高) | Space between tie bars(W×H) | mm | 570×570 | ||||||
| 最大模厚 | Max.Mold height | mm | 550 | ||||||
| 最小模厚 | Min.Mold height | mm | 200 | ||||||
| 頂出行程 | Ejector stroke | mm | 150 | ||||||
| 頂出力 | Ejector stroke | kN | 70 | ||||||
| 其他 | OTHERS | ||||||||
| 最大油泵壓力 | Max Pump pressure | kW | 16 | 16 | |||||
| 油泵電機功率 | Pump motor power | kW | 22 | 13 | |||||
| 電熱功率 | Heating power | kW | 16.8 | 7.5 | |||||
| 外形尺寸(長×寬×高) | Machine dimension(L×W×H) | m | 5.90×3.32×2.25 | ||||||
| 油箱容積 | Olitank cubage | L | 380 | ||||||
| 機器重量 | Machine weight | t | 8 | ||||||
在常規機上可配置不同規格的平面轉盤,可根據客戶需求定制。
Equipped rotary platen with different specifications on the standard machine according to customer’s needs.
造模簡易，成本低，生產快捷。
Simplify mold design enabling reduction in production cost and lead time.
安裝在共塑注塑機上，接上機器提供的液壓動力及控制線路，轉盤可作180°往復旋轉。
The platen can be rotated 180° to and fro when it installed on co-injection machine with turning on hydraulic power and control circuit.
內置兩組運水流道，在盤面上提供運水喉咀。
Two units of water channels with water outlet installed on the platen surface.
